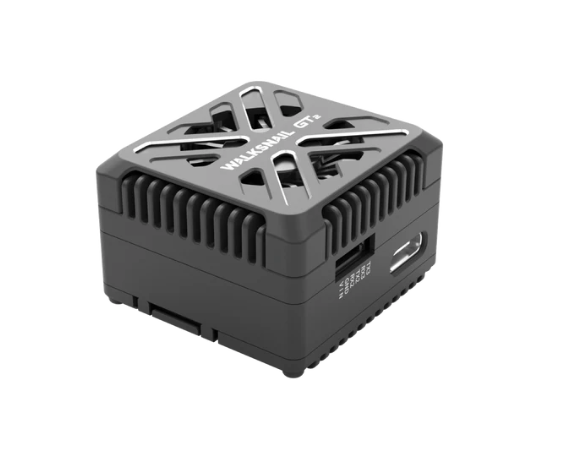

Avatar GT Kit Overview
Avatar GT significantly enhances signal transmission distance, meeting various flight requirements, and can reach up to 2W power within legal and regulatory limits, ensuring uninterrupted flight exploration and enhancing your FPV experience.
- 2W (Max) RF Power
- Input Voltage Range 11.1V-25.2V 1080P 100fps
- Dual Antennas High Frame 720P/1080P
- Micro SD Card Slot Compatible Moonlight Camera（4K DVR only available with external DVR Module）
Mads Video Overview & Deep Dive
TBP
Specification
Camera
- Model Avatar HD Pro Camera
- Image Sensor 1/1.8-Inch Sony Starvis Ⅱ sensor
- Resolution 1080P/60fps; 1080P/100fps; 720P/120fps; 720P/60fps;
- Ratio 16/9; 4/3
- Lens 8Mp
- FOV 160°
- Aperture F1.6
- Shutter Rolling shutter
- Min.Illumination 0.00001Lux
- Weight 9.5g
- Dimensions 191924mm
- Coaxial Cable 140mm
- Gyroflow supported
GT VTX
- Model Avatar GT
- Communication Frequency 5.725-5.850 GHz
- Transmitter Power (EIRP) FCC: <30dBm, MAX:33dBm ; CE: <14dBm;
- SRRC: <20dBm; MIC: <25dBm
- I/O Interface Micro SD card slot; JST1.04(power cable) Supported SD Cards Micro SD (up to 256 GB) Mounting Holes 25.525.5mm; 2020mm Dimensions 3434*20mm
- Recording 1080p/720p
- Weight 41.6g (Antenna included)
- Operating Temperature -10-40℃
- Channels 8
- Wide Power Input 11.1V-25.2V
- Supported FC System Betaflight; Inav; Fettec; Kiss; ArduPilot
- OSD Canvas mode
- Latency Average delay 22ms
- Antenna 2(IPEX)
Dimensions
Wiring

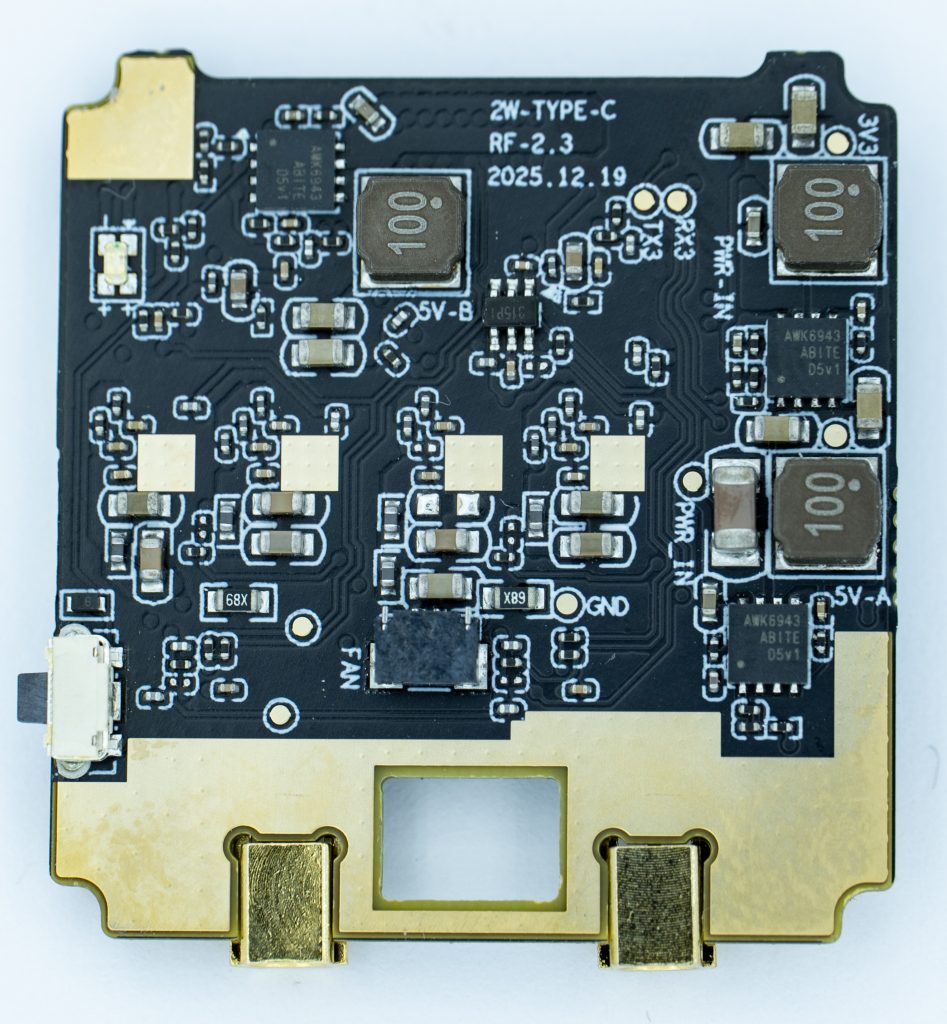

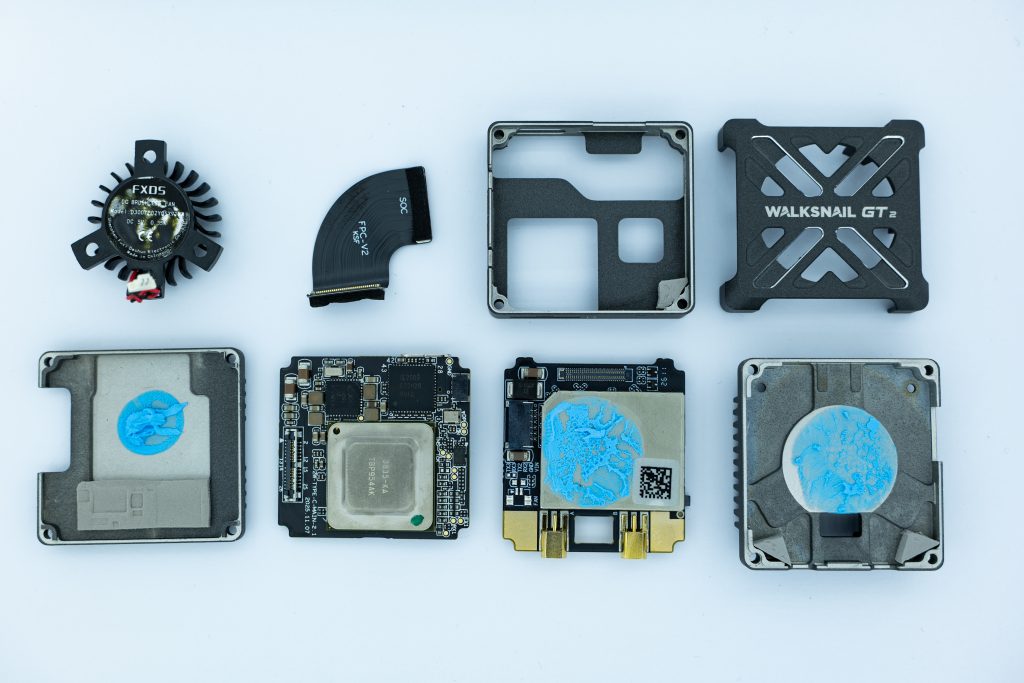

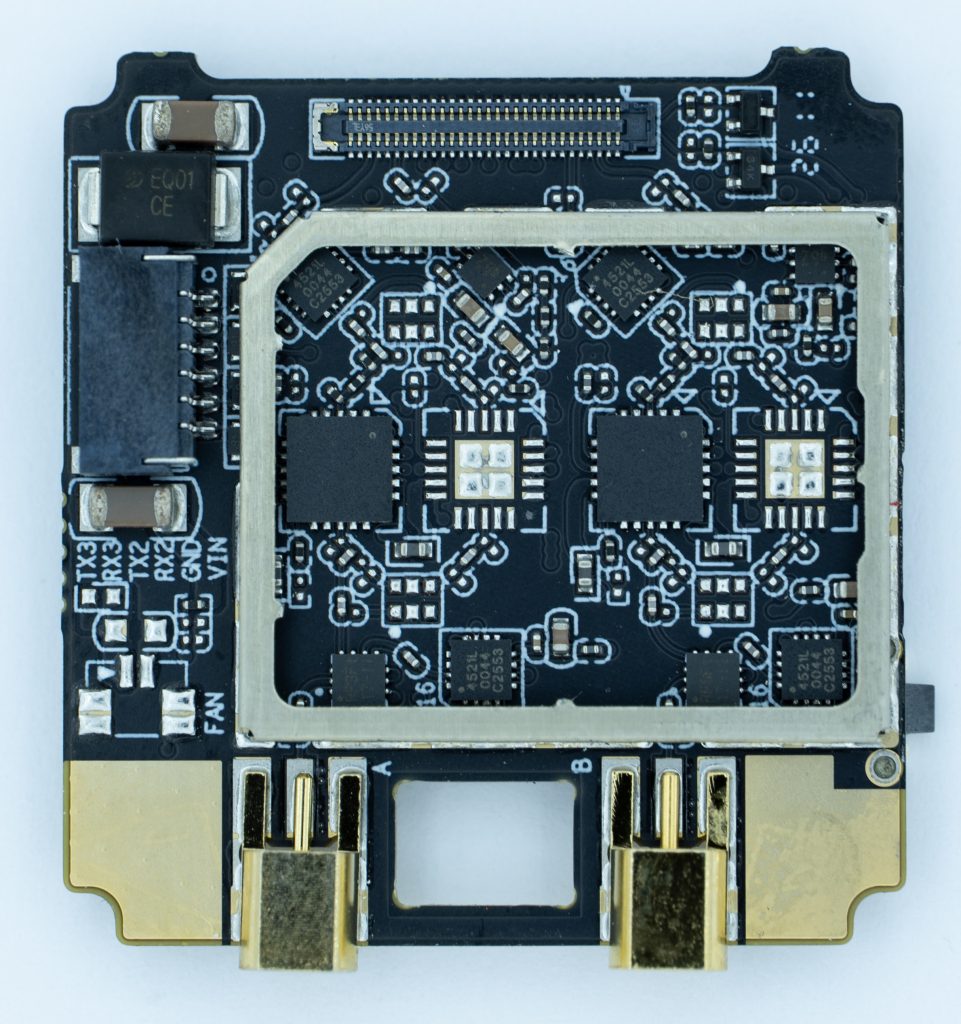

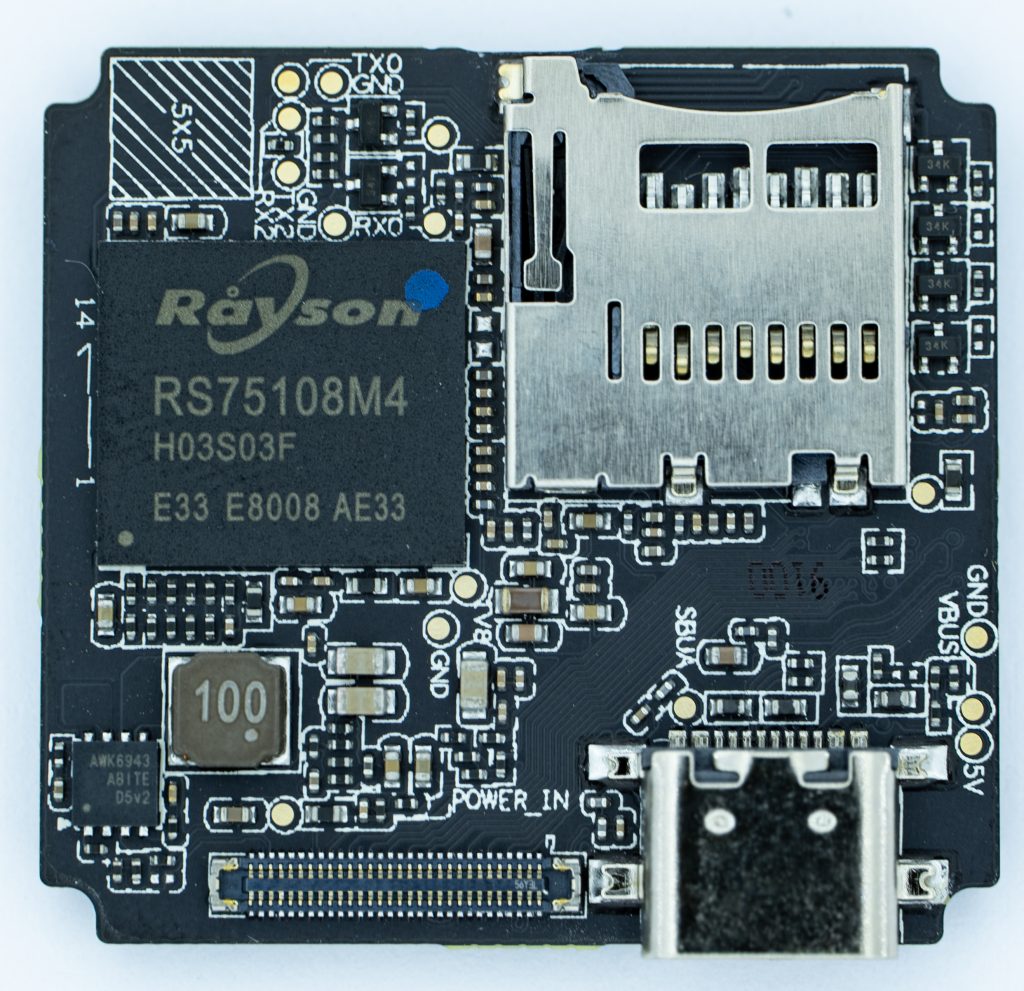

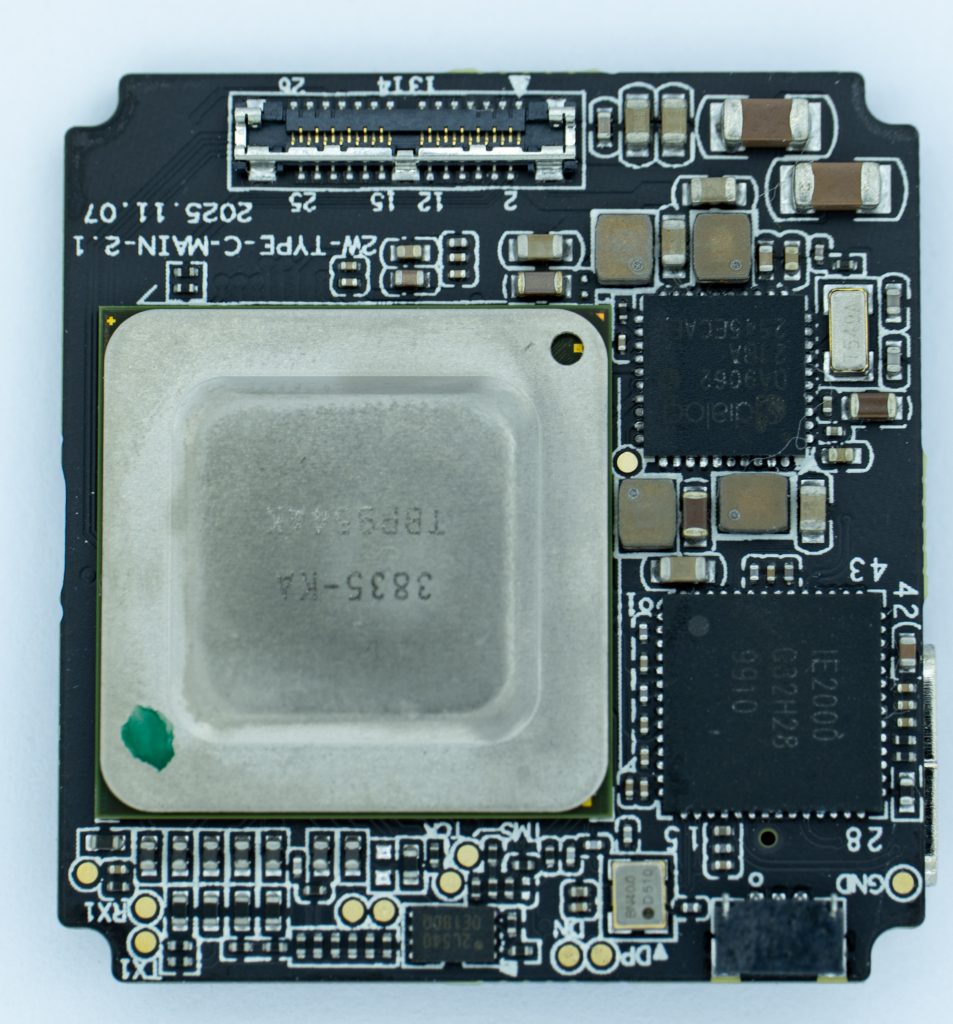

Internal Images
